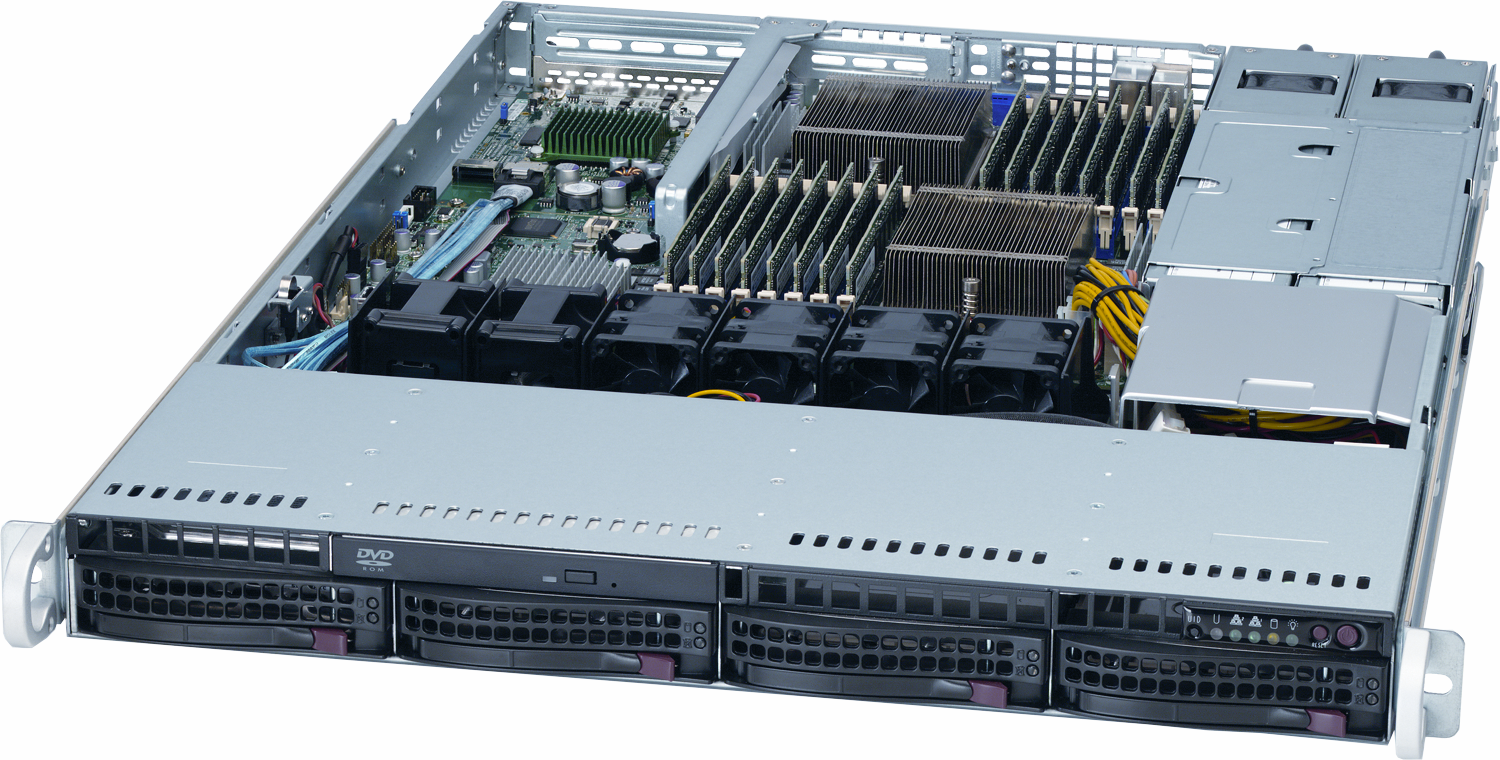

Designing server hardware resources involves planning and configuring the physical components of servers to meet the performance, capacity, and reliability requirements of your organization's IT infrastructure.
Workload Analysis:Understand Workloads Analyze the type of workloads the servers will be running (e.g., web applications, databases, file servers). Performance Requirements Identify performance criteria such as CPU, memory, storage, and network bandwidth.
Server Specification:CPU (Processor) Choose processors based on the workload's processing requirements. Memory (RAM) Determine the amount of RAM needed for optimal performance and scalability. Storage Select storage solutions (HDD, SSD, or a combination) based on data access patterns and capacity requirements.
Scalability and Redundancy: Scaling Options Plan for scalability by considering whether to scale vertically (adding resources to a single server) or horizontally (adding more servers). Redundancy Design for high availability by incorporating redundant components (power supplies, fans) and considering failover strategies.
Virtualization: Hypervisor Selection If using virtualization, choose a hypervisor (e.g., VMware, Hyper-V, KVM) based on your organization's needs. Resource Allocation Allocate virtual resources appropriately, considering the needs of virtual machines (VMs) and ensuring proper oversubscription if needed.
Storage Architecture:RAID Configuration Implement RAID configurations for data protection and performance improvements. Storage Tiering Consider using multiple storage tiers based on performance requirements (e.g., SSDs for high-performance workloads, HDDs for capacity).

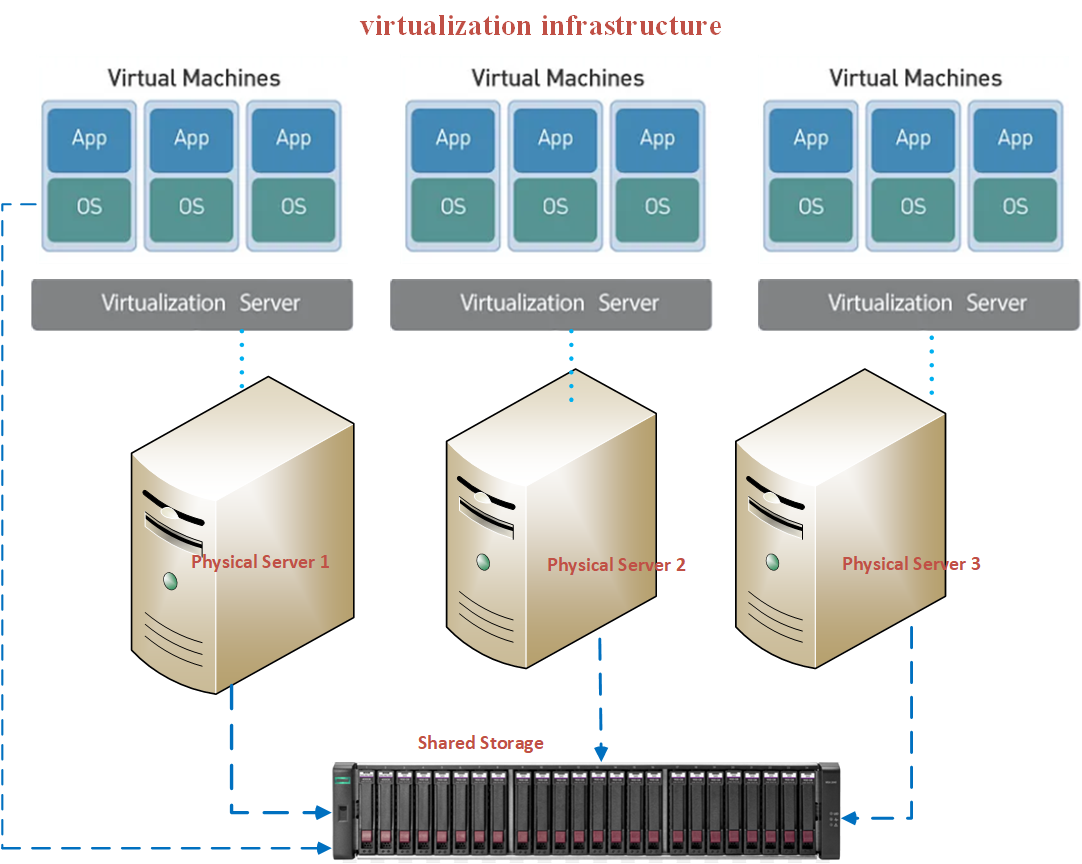

When designing server virtualization with Microsoft technologies, particularly using Hyper-V as the hypervisor, there are several key considerations to ensure a robust and efficient virtualization environment.
Assessment and Planning: Workload Analysis Understand the types of workloads that will be virtualized and their resource requirements. Performance Requirements Identify performance criteria for CPU, memory, storage, and network. Licensing Ensure compliance with Microsoft licensing for virtualized environments.
Hypervisor Selection: Hyper-V Version Choose the appropriate version of Hyper-V based on your organization's needs and licensing. Integration with Windows Server Consider the integration of Hyper-V with Windows Server for ease of management.
Host Hardware Considerations: CPU Compatibility Ensure that host servers have CPUs compatible with Hyper-V and support virtualization extensions (e.g., Intel VT-x or AMD-V). Memory Provide sufficient RAM for the host server to accommodate the virtualized workloads.
Storage Design:Storage Spaces Utilize Storage Spaces for efficient storage management and to create resilient storage pools. Clustered Storage Consider implementing clustered storage solutions for high availability. Storage QoS Implement Storage Quality of Service (QoS) to manage and prioritize storage resources.
Networking Configuration:Hyper-V Networking: Plan for virtual switch configurations and network isolation for VMs. Network Load Balancing: Implement network load balancing for high availability and improved performance.
Implementing a new Active Directory (AD) environment or migrating to a new one is a complex process that requires careful planning and execution
Assessment and Planning: Current Environment Analysis Evaluate the existing infrastructure, including servers, network, and client systems. Workload Analysis Understand the types of workloads that will interact with AD. User and Group Structure Plan the organizational unit (OU), user, and group structure. Domain Naming Decide on the domain name and forest structure
Design the Active Directory Forest: Domain Structure Plan the number and structure of domains within the forest. Forest Functional Level Choose the appropriate forest functional level based on the operating systems in use. Trust Relationships Design trust relationships between domains and forests if necessary.
Hardware and Software Requirements:Server Hardware: Ensure that server hardware meets the minimum requirements for domain controllers. Operating System: Choose the appropriate Windows Server version for domain controllers.
Deploy Domain Controllers:Install Active Directory Domain Services (AD DS): Promote selected servers to domain controllers. DNS Configuration: Ensure that DNS is properly configured on all domain controllers.
Computer and Server Migration:Joining Computers: Rejoin client computers to the new domain. Member Server Migration: Migrate member servers using appropriate methods.
Group Policy and OU Migration:Group Policy Migration: Migrate Group Policy Objects (GPOs) to the new domain. Organizational Unit Structure: Replicate the OU structure in the new domain.
Designing Network Attached Storage (NAS) or Storage Area Network (SAN) solutions involves planning and configuring storage systems to meet the performance, capacity, and reliability requirements of an organization's IT infrastructure.
Assessment and Requirements Gathering:Data Analysis Identify the types of data that need storage, their access patterns, and performance requirements. Capacity Planning Determine the total storage capacity needed and plan for future growth. I/O Requirements Understand the input/output (I/O) requirements of applications and workloads.
Choose Between NAS and SAN: NAS (Network Attached Storage): Suitable for file-level access. Uses protocols like NFS (Network File System) or SMB (Server Message Block).
SAN (Storage Area Network): Suitable for block-level access. Uses protocols like Fibre Channel or iSCSI (Internet Small Computer System Interface).
Select Storage Hardware:Disk Types: Choose appropriate disk types (HDD, SSD) based on performance and capacity requirements. RAID Configuration: Implement RAID for data protection and performance optimization. Storage Controllers: Select reliable storage controllers with necessary features.
Networking Infrastructure:NAS Networking Plan for network bandwidth and consider link aggregation for NAS solutions. SAN Networking Design a dedicated and high-speed network for SAN, considering Fibre Channel or Ethernet for iSCSI.
Redundancy and High Availability:JRedundant Controllers Use dual controllers for high availability in storage systems. Multipathing Implement multipathing for SAN to ensure redundancy and load balancing.
